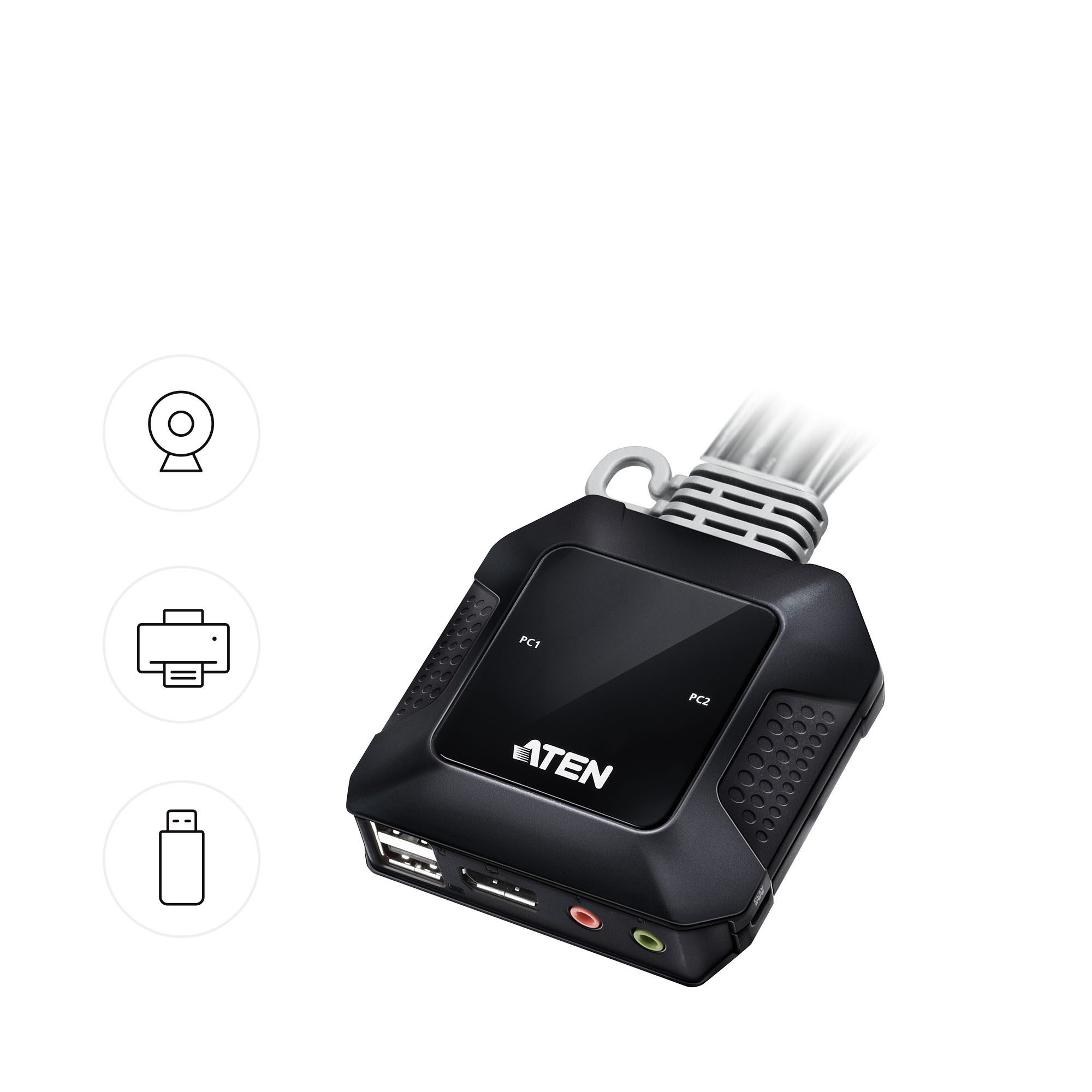

The CS52DP 2-Port USB-C DisplayPort Hybrid Cable KVM Switch is a control unit that allows access to a USB-C device and a DisplayPort computer. With the CS52DP, you can quickly and effortlessly switch between two computers by using a convenient remote port selector pushbutton.

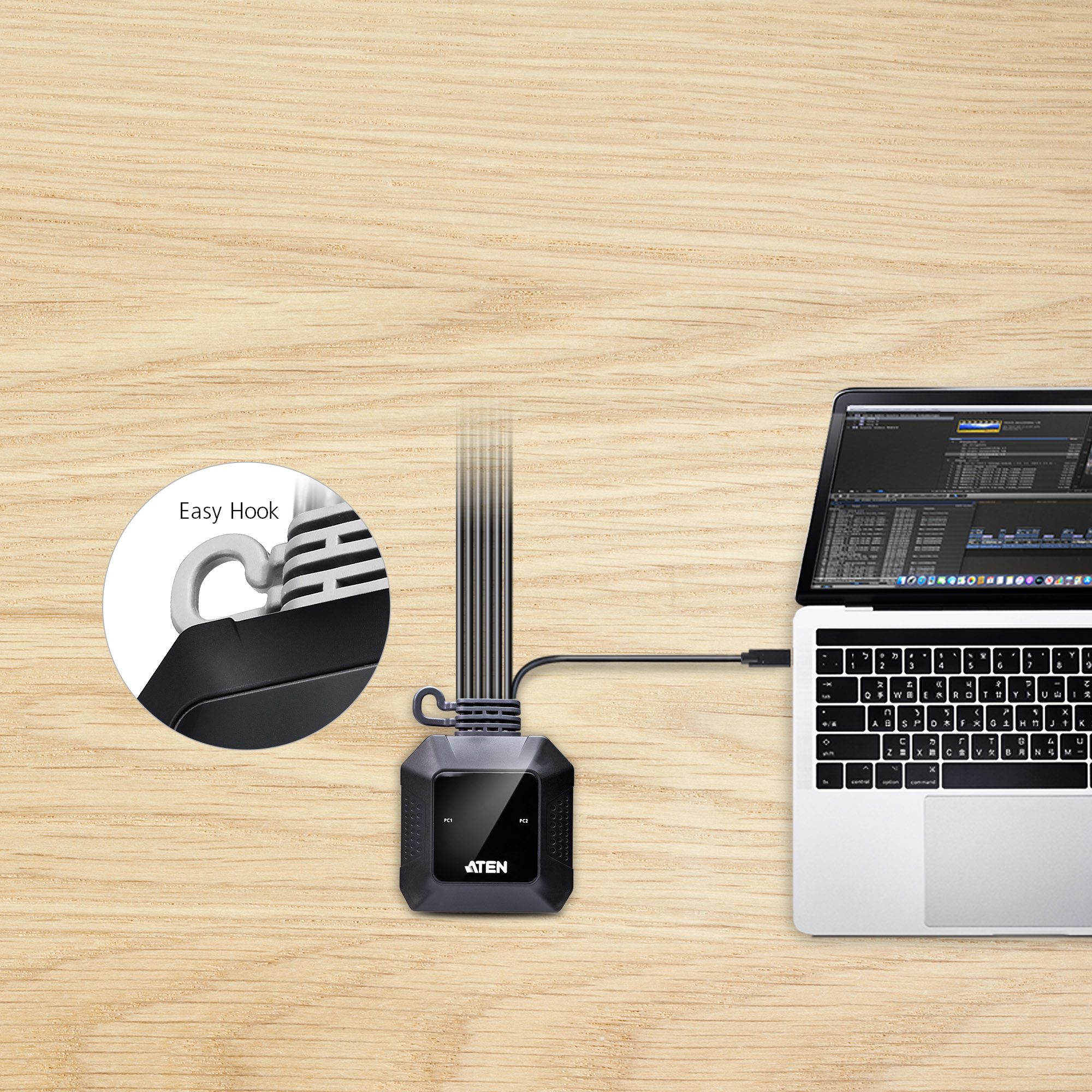

The compact CS52DP also brings in vivid 4K viewing quality to lift up work performance. Further advanced features of the CS52DP include the bus-powered mode and no need to install software or configure device. This plug and play switch is ideal for people who need quick control to multitask between a computer and a USB-C device on a desktop in any environment. Moreover, the compact design allows for an efficient and tidy installation, providing an ideal space-saving solution to keep your desk well-organized.
Computer Connections
2
Port Selection
Remote Port Selector
Connectors

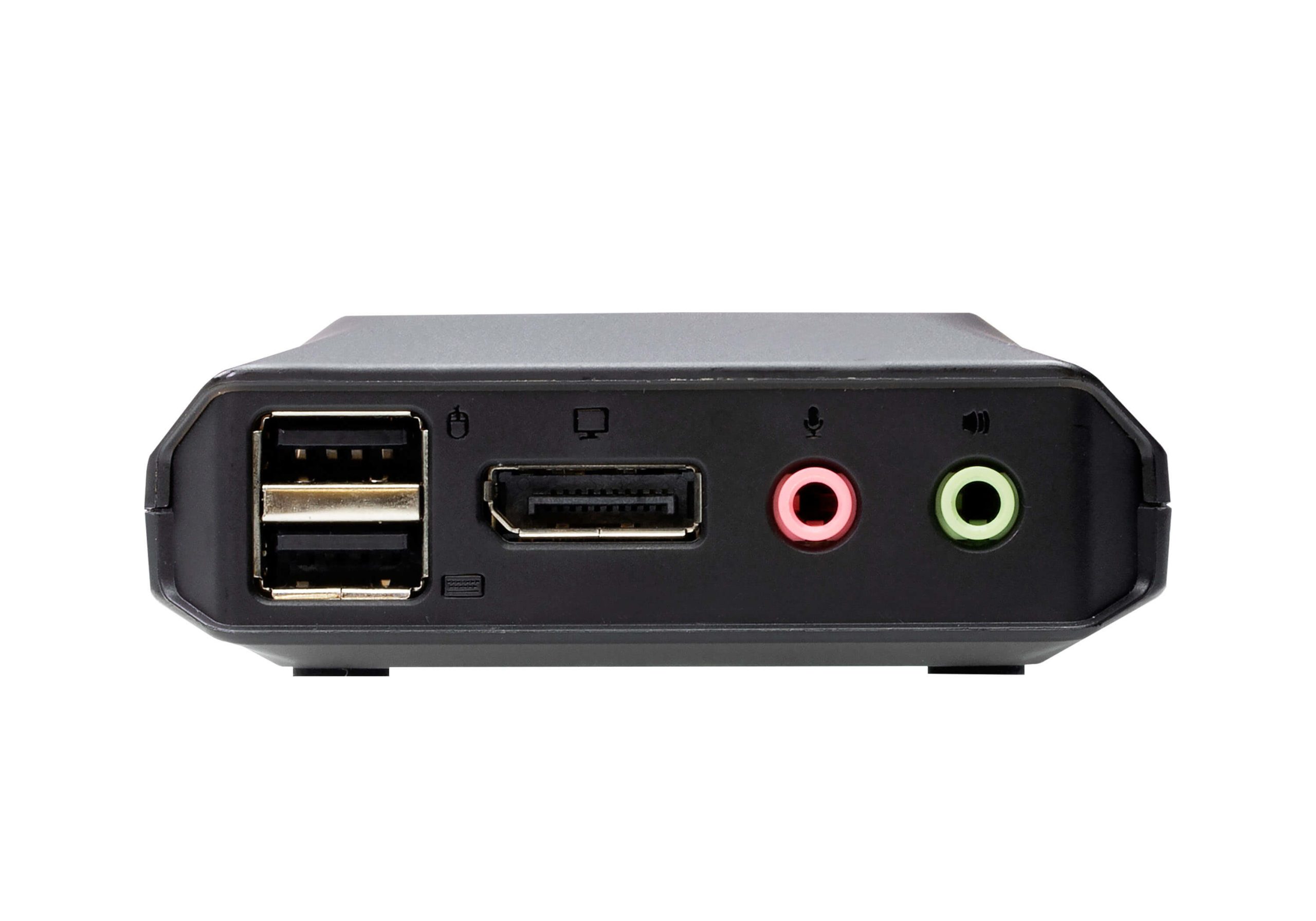

Console Ports
1 x DisplayPort Female
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
1 x 3.5mm Audio Jack Female (Pink)

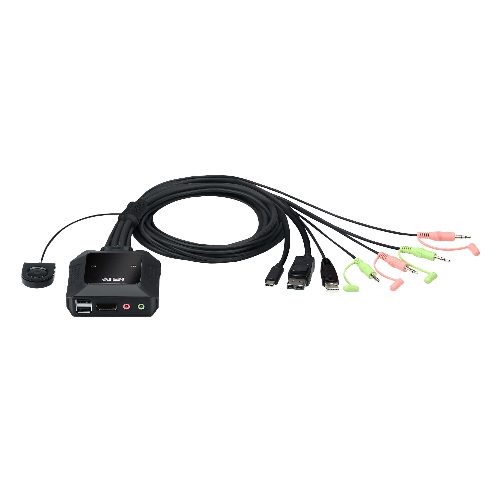

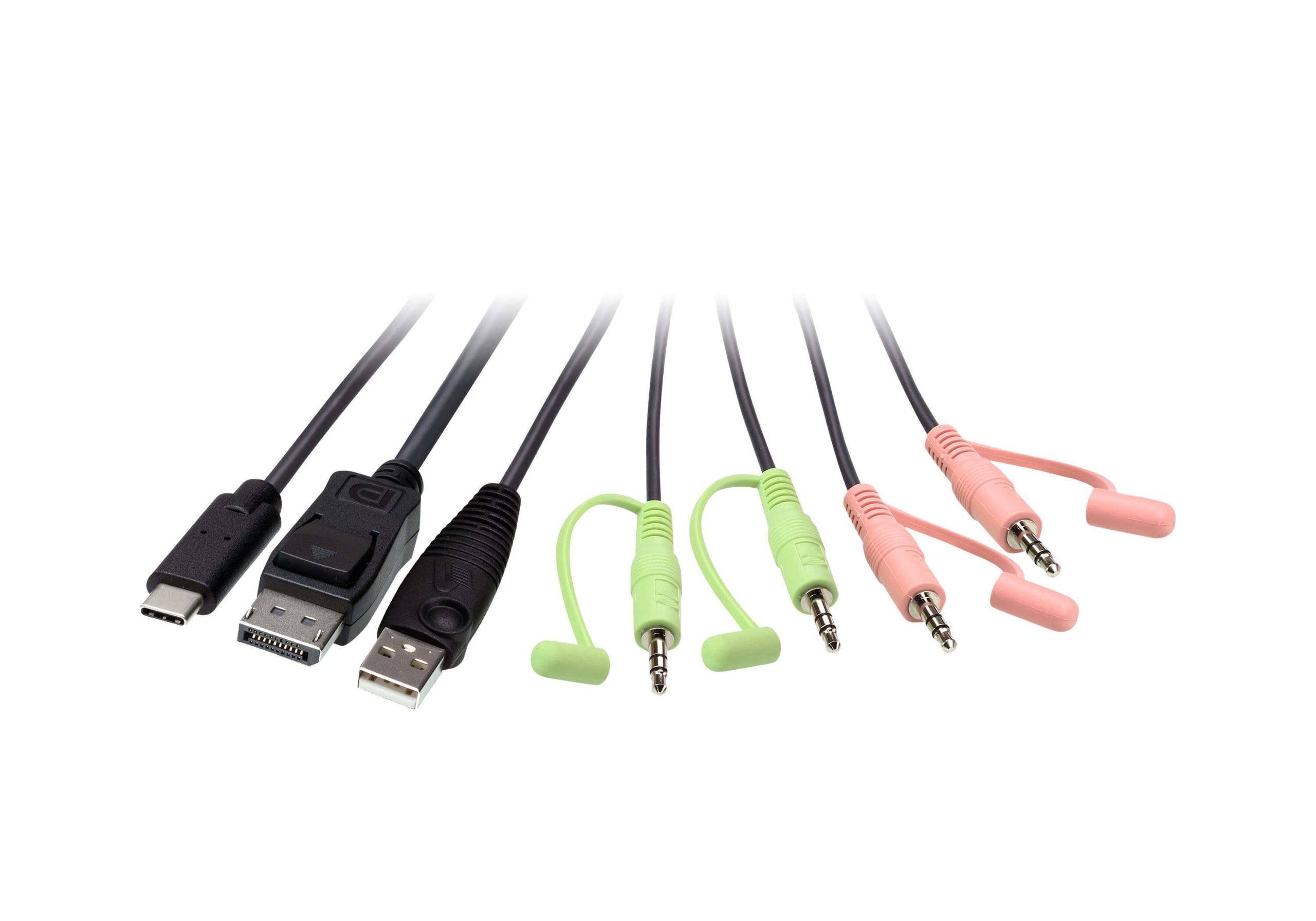

KVM (Computer) Ports
CPU1:
1 x DisplayPort Male
1 x USB Type A Male
1 x 3.5mm Audio Jack Male (Green)
1 x 3.5mm Audio Jack Male (Pink)
CPU2:
1 x USB Type C Male
1 x 3.5mm Audio Jack Male (Green)
1 x 3.5mm Audio Jack Male (Pink)
Power (Optional)
1 x USB Micro Type B Female
LEDs
KVM Port (On Line /Selected) 2 (White)
Cable Length
KVM 2 x 1.2 m
Remote Port Selector 1.8 m
Emulation
Video
Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
Power Consumption
DC5V:0.74W:8BTU
Environmental
Operating Temperature 0 – 50°C
Storage Temperature -20 – 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing
Plastic
Weight
0.30 kg ( 0.66 lb )
Dimensions (L x W x H)
8.34 x 8.42 x 3.04 cm
(3.28 x 3.31 x 1.2 in.)
