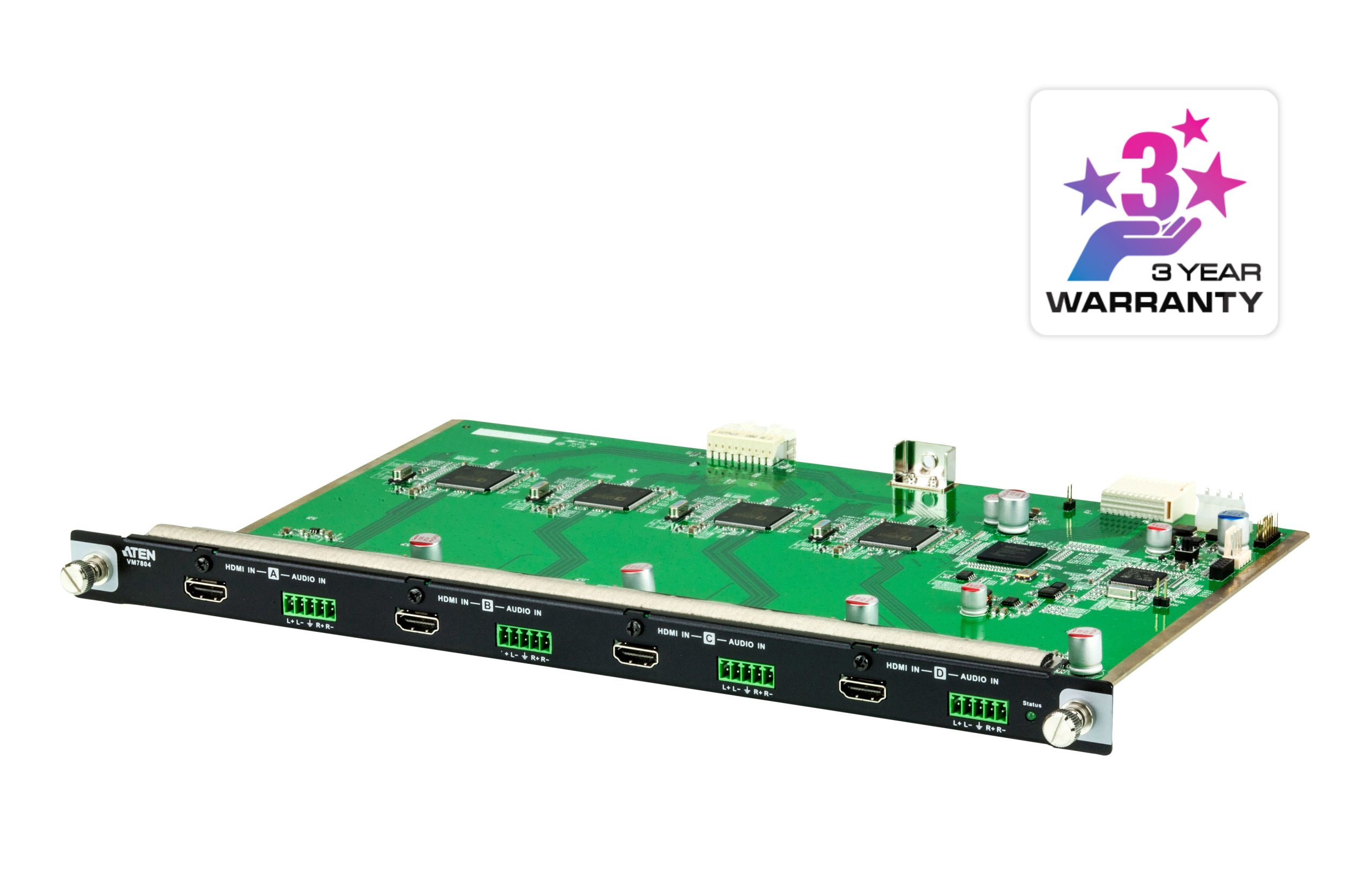

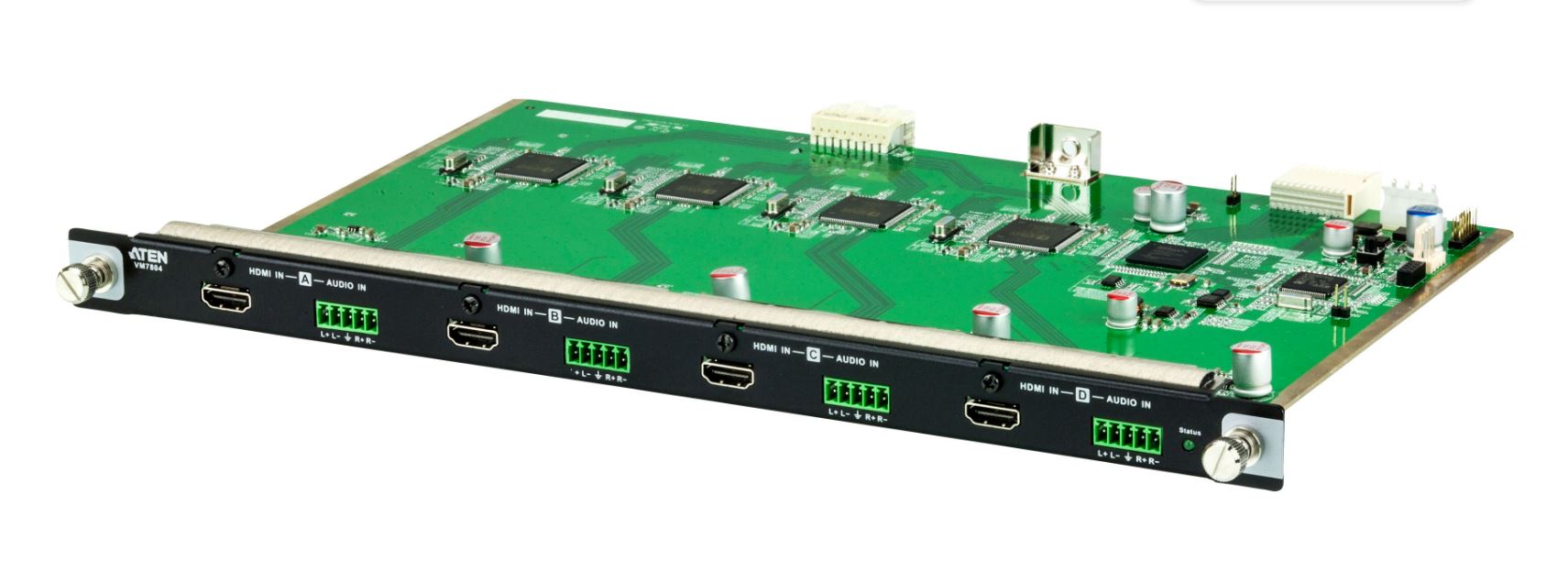

Aten 4 Port HDMI Input Board for VM1600A/VM3200
HDMI (3D, Deep Color); HDCP 1.4 Compatible
EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display
Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded
Hot-swappable design for easy integration of I/O boards.
Video Input
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance Up to 5m
Video
Max. Data Rate 6.75 Gpbs (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)
Max. Resolution Up to 1920 x 1080
Audio
Input 4 x Captive Screw Connector, 5 Pole
*Audio signal type: stereo, balanced/unbalanced.
Power Consumption 7W:33BTU
Environmental
Operating Temperature 0 – 40°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.58 kg ( 1.28 lb )
Dimensions (L x W x H) 35.20 x 23.80 x 2.33 cm
(13.86 x 9.37 x 0.92 in.)
Carton Lot 2 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Contents
1x VM7804 4-Port HDMI Input Board
4x Terminal Blocks
1x User Instructions
