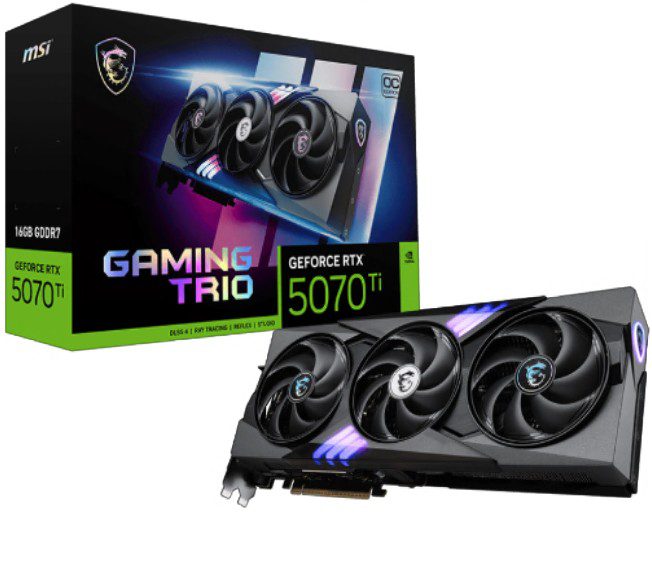

MSI nVidia GeForce RTX™ 5070 Ti 16G GAMING TRIO OC,PCI Express® en 5, Boost: 2572 MHz, CUDA 8960 Units, 16GB GDDR7, HDMI™ x 1
SPECIFICATIONS
Marketing Name GeForce RTX™ 5070 Ti 16G GAMING TRIO OC
Model Name G507T-16GTC
Graphics Processing Unit NVIDIA® GeForce RTX™ 5070 Ti
Interface PCI Express® Gen 5
Core Clocks Extreme Performance: 2580 MHz (MSI Center)
Boost: 2572 MHz (GAMING & SILENT Mode)
CUDA® CORES 8960 Units
Memory Speed 28 Gbps
Memory 16GB GDDR7
Memory Bus 256-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 300 W
Power connectors 16-pin x 1
Recommended PSU 750 W
Card Dimension (mm) 338 x 140 x 50 mm
Weight (Card / Package) 1296 g / 1819 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
FEATURES
TRI FROZR 4
Upgraded fans, airflow control, and thermal design deliver
superior cooling and quieter operation.
STORMFORCE FAN
Seven fan blades, claw texturing, and a circular arc are designed
for optimal airflow with minimal noise.
Nickel-plated Copper Baseplate
Heat from the GPU and memory is swiftly captured by a nickelplated copper baseplate and transferred.
Core Pipes
Core Pipes feature a square design to maximize contact with the
GPU baseplate for optimal thermal management.
Metal Backplate
A reinforcing metal backplate with airflow vents and thermal pads
enhances cooling.
Wave Curved 4.0
Precision-engineered wave edges with a high-low fin design
enhance airflow and reduce turbulence.
Air Antegrade Fin 2.0
The fins feature a V-shaped cutout and a high-low design at the
airflow passthrough to optimize flow efficiency.
Dual BIOS
Dual BIOS lets you set the priority to full performance in GAMING
mode or low noise in SILENT mode.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.
Afterburner
Take full control with the most recognized and widely used
graphics card overclocking software in the world.
